Lionel 19877 Barrel Ramp Car
Click on images
for
larger
view
Suggested Configuration
ACC + ## + SET
AUX1 + 4 + BOOST
AUX2 + 4 + BOOST

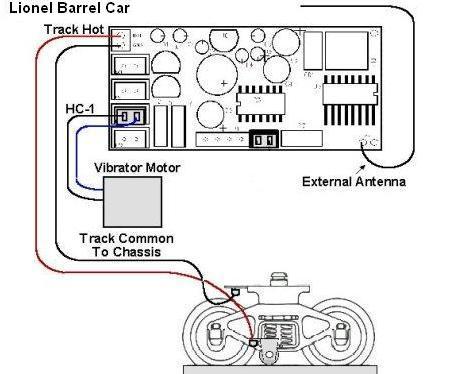

This picture is an overview
of the Barrel Car installation. The

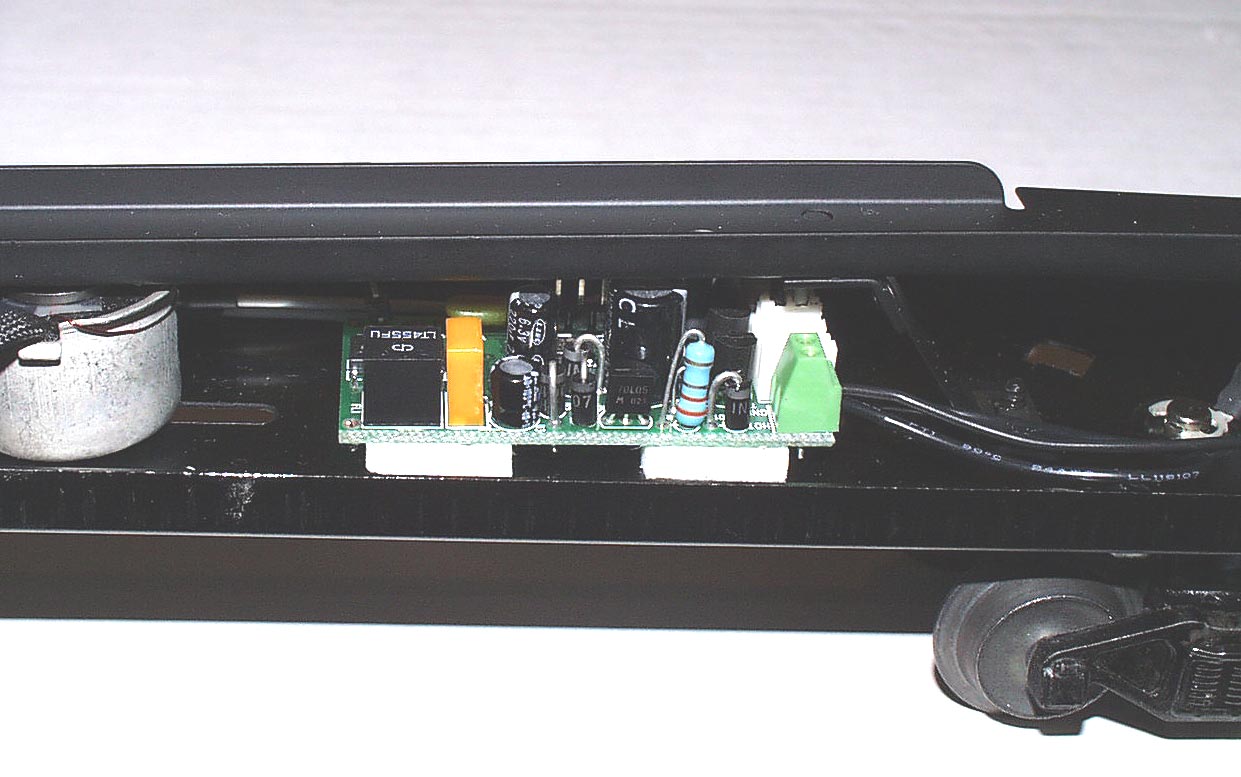

Mini Commander is located under the ramp. A single
"collector" was added to the truck closest to the Mini
Commander. AUX1 was chosen
to control the operation.

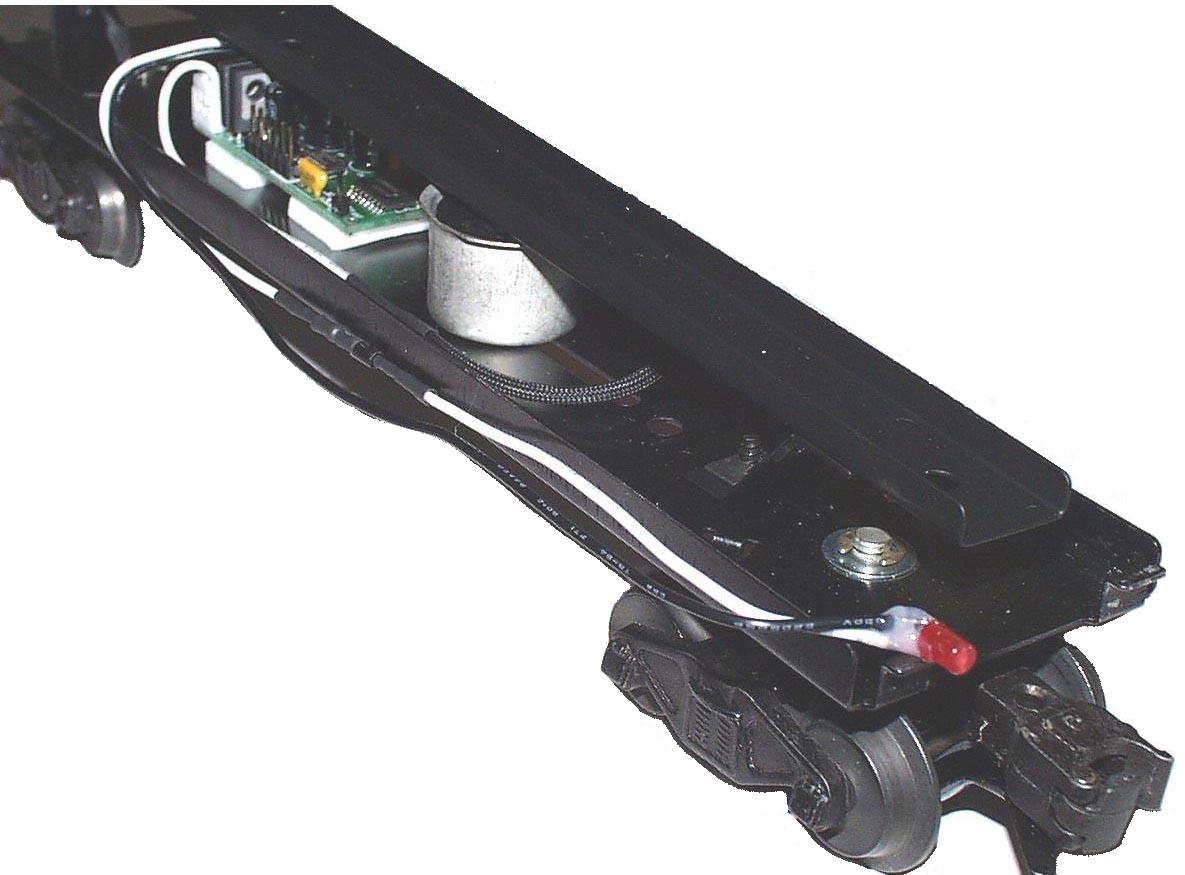

An LED was added
for an "End of Train" strobe. A small hole was
made in the shell for the LED to attach. The strobe function on
LC2 (AUX1 + 9) is used for activation.
