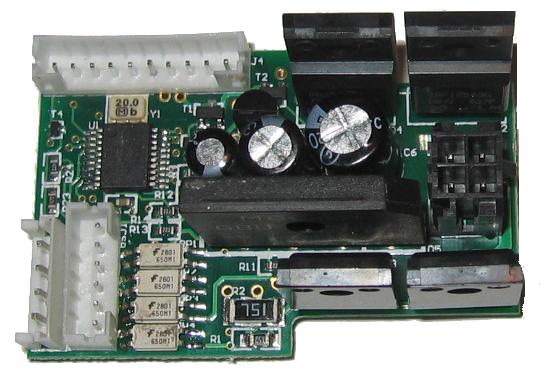

Cruise CommanderTM Modular Version

Locomotive Command Control Cruise Upgrade


Tach-less Installation !

The patented (#
7,132,807) Cruise Commander M with SMS* Technologytm is a breakthrough cruise control technology, unprecedented in 3-rail "O" Gauge.  With the Cruise Commander M you get ultra-slow, constant speed, operation of your locos without complicated installations.  Imagine how many locos that do not have flywheels that can now have cruise functionality!

The Cruise Commander M replaces the Lionel modular motor driver (DCDR), is plug compatible, and a minimal install only requires the addition of a single wire to the serial data for operation.

While in operation, velocity information is monitored from the motor directly.  If dual-motored, each motor is balanced to the other, synchronizing the motors for smooth operation. By using high current HEXFET drivers and operating at 20khz PWM on the motors, silent motor operation is attained.  Additionally, lash-ups are possible when the locos are matched using the exclusive "nudge" feature.

Cool Features:
    Simple Tach-Less installation and operation
    High Frequency (20khz) PWM for silent drive
    DC motor capability (6 Amps)
    Operates in command and conventional modes
    CAB-1tm  selectable 32 or 100(default) speed steps
    Serial data out for configuration acknowledgement
    Directly drives LED's lighting without complex "load" resistor wiring
    LED's lighting features include markers and oscillating ditch lamps
    On-board micro-controller provides future enhancement capabilities
    Uses R2LC (not included) to be fully compliant with TMCC standards
    Only 1.95" L  x  1.27" W  x  1.0" H

Speed Selection:
  32 speed step activation: AUX1 + 0 + AUX1 + 0 + BRAKE
100 speed step activation: AUX1 + 0 + AUX1 + 0 + BOOST

Cruise Selection:
  Cruise Off: AUX1 + 0 + AUX1 + BRAKE + 7 + BRAKE
  Cruise On: AUX1 + 0 + AUX1 + BRAKE + 9 + BRAKE

*SMS - Speed Management System

TMCC, R2LC, CAB-1, and RailSounds are registered trademarks of Lionel LLC
DCS is a registered trademark of MTH, Inc.
